SP-200-500 sewer and pips cleaning machine

1. Compact structure and small size
2. Stable operation, suitable for long-term continuous operation
3. Easy to operate, mobile operation.
4. High efficiency of sewer cleaning and dredge, good effect
5. No need to add chemicals, green and environmental protection.

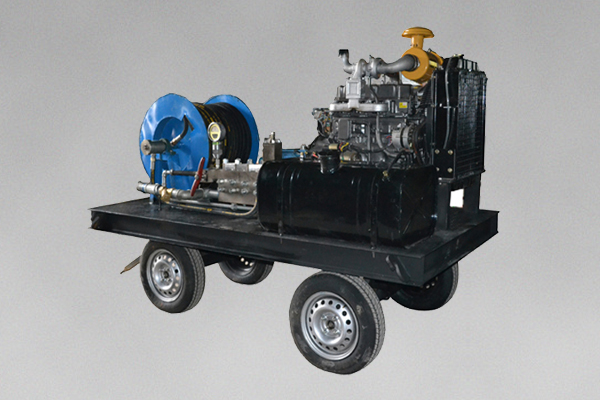

　　SINPO SP-200-500 mode machine is mainly used to dredge and remove the blockage and dirt in sewer pipeline. They are driven by diesel engine to drive a high-pressure pump and uses the reaction force of pressure generated by high-pressure water jet beam in the nozzle hole to push nozzle and drive the hose to advance in the sewer by itself, and at the same time, the high-pressure sprayed from the nozzle hole. The water jet beam scours the dirt on the pipe wall. When nozzle reaches the end of pipe, machine’s hose is forced to move backward under the tension of the hose reel. Meanwhile, the high-pressure water jet beam brings the dirt inside the pipe to the outside of pipe to achieve the cleaning effect of pipe. The product can be configured as mobile or fixed equipment, equipped with heavy-duty pneumatic tire base, fuel engine, high-pressure pump, battery, safety valve, overflow valve, pressure relief valve, pressure gauge, water tank, fuel tank, hose reel, pipeline system, high-pressure hose, pipe cleaning nozzle, etc.

　　At the same time, SP-200-500 sewer cleaning machine can perform a variety of cleaning operations, such as configuring a hand-held spray gun to clean public facilities such as exterior walls. DDB-2 series mobile sewer cleaning machine is easy to operate and easy to maintain. Compared with similar products, it can double the work efficiency and reduce labor costs. Their high-pressure pump and main components of mobile sewer cleaning machine are manufactured in China, which can provide customers with great convenience in use and maintenance.

Standard Accessories:

　　* Gasoline engine

　　* Industrial grade ceramic plunger pump

　　* Pressure regulating valve

　　* Stainless Steel Pressure Gauge

　　* Inlet filter

　　* Manual winder

　　* Metal reinforced structural frame

　　* Pneumatic wheels/Nylon pressure-resistant wheels

　　* 40 meters special high-pressure hose

　　*Five-pipe nozzles in the front and back

　　* Front and rear four-pipe nozzles

　　* Rear six-pipe nozzle

       Application:

　　1. Municipal sewer, road sewer dredging and cleaning

　　2. Dredged and cleaned of Factory circulating water pipelines

　　3. Dredging and cleaning for Sewage pipe

　　4. Pipeline cleaning in residential property and hotels
