ZY-150 Horizontal diesel ignition device

Stable performance and reliable operation.

Stable performance and reliable operation.

No harm to the environment

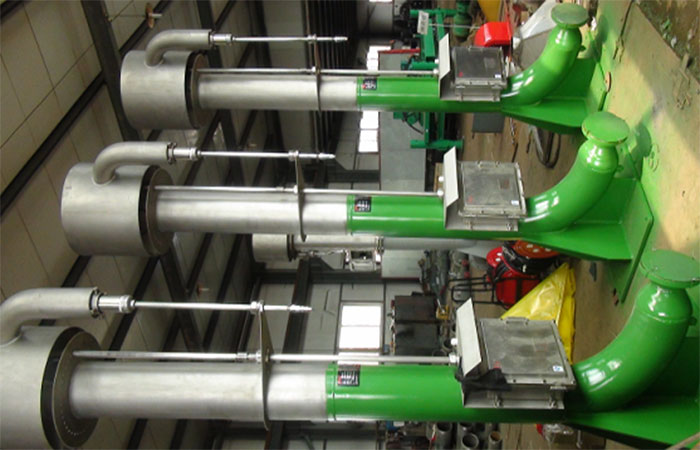

Horizontal diesel ignition device is mainly composed of burner (torch head), ZY-150 remote control diesel ignition device, wire reel, igniter box, diesel gun, connecting line and oil pipe. It adopts a high-performance ignition circuit with stable performance and reliable operation.

It is mainly used for burning combustible and harmful gas or waste gas in oil drilling operations and natural gas exploration and development, so as to eliminate its harm to the environment and safety. It is a safe and environmentally friendly equipment.

ZY-150 remote control ignition device for drilling operation adopts portable instrument case, which integrates remote control ignition and manual ignition. The control box has a built-in 24VDC battery, which can be charged by an external 220VAC power supply. The igniter is also equipped with a remote ignition device, which can realize remote ignition within a range of 150 meters. Therefore, it is especially suitable for the ignition of vent flares in oil and natural gas drilling. For the torch with high pressure and large venting volume, the diesel burner is ignited first, and then the main torch is ignited to ensure the reliability of ignition.

ZY-150 remote ignition control box also has a special battery voltage real-time monitoring circuit. When battery voltage is too low, monitoring module will send out an alarm signal to remind the user to charge in time.

Product configuration：

Diesel atomizer gun

And configure a diesel tank

Pressure gauge

Safety valve

Oil outlet

Imported oil

Compressed air inlet
