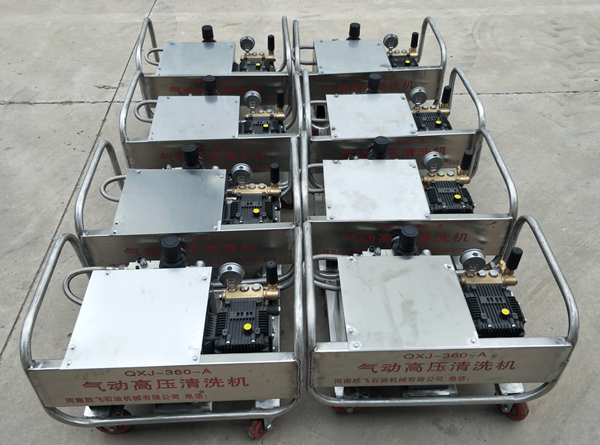

QXJ-360-A pneumatic high-pressure cleaner

Description:

　　QXJ-360-A type is a mobile high-pressure water cleaning device independently developed by Henan Sinpo Machinery Co., Ltd. This device uses high-pressure plunger pumps, reducers, air motors, and their frame structure is made of high-quality stainless-steel materials. It has the advantages of anti-corrosion, anti-rust, explosion-proof, small size, light weight, long life, reasonable structure, convenient operation, safe and reliable operation, etc.

　　The registered trademark of QXJ-360-A pneumatic high-pressure cleaner is "SINPO", and the implementation standard is GB/13960.12-2001. QXJ-360-A mode cleaning machine is powered by compressed air, drives a high-pressure water pump, and sprays a high-pressure water column through a high-pressure water pipe through a high-pressure water gun to clean various machinery and equipment. Pneumatic high-pressure cleaning machines are safer and more reliable than electric-powered cleaning machines and can fully meet the requirements stipulated in the "Safety Law".

　　Due to the use of compressed air as power, there will be no dangerous factors such as electric sparks, especially suitable for use in places with high safety and explosion-proof requirements such as petroleum, chemical industry, coal mines, flammable, explosive, high temperature, humidity, dust, etc., and can also be used in emergencies next, it is used for emergency firefighting.

Working principle:

　　Compressed air enters air motor through ball valve and pneumatic unit triple, then high-pressure air pushes blades of air motor to drive output shaft of air motor to rotate. After air motor is started, high-pressure plunger pump starts to work, and water enters high-pressure pump through filter screen. Under the action of pump piston, high-pressure water is generated, which passes through the high-pressure hose and is sprayed out by the high-pressure water gun for cleaning.

　　The spray gun of cleaning machine is designed as a pistol or a long gun. You can hold spray gun with one or both hands. Press the trigger of spray gun to open high-pressure valve, and high-pressure water can be sprayed out from spray gun to start cleaning. When index finger releases the trigger, high-pressure valve is closed, high-pressure water stops spraying, and the cleaning work stops. The range of high-pressure water can be realized by adjusting water pressure and adjusting "adjustment sleeve" of the spray gun.

　　When long-distance cleaning is required, you can rotate adjustment sleeve on spray gun to move it forward, and water flow will form a beam, then shooting range will increase. The outlet pressure of water pump can be adjusted. When performing close-distance cleaning, adjusting sleeve on spray gun can be rotated backward, so that high-pressure water flows through the spiral groove, forming a diffuse mist sprayed from nozzle, water injection speed decreases, and coverage area increases.

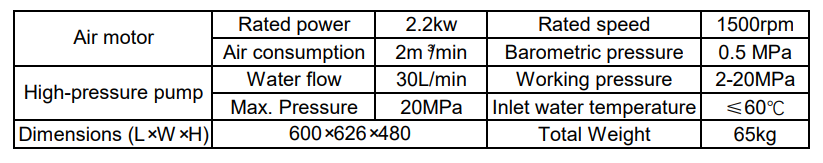

Product parameters：

Description:

　　QXJ-360-A type is a mobile high-pressure water cleaning device independently developed by Henan Sinpo Machinery Co., Ltd. This device uses high-pressure plunger pumps, reducers, air motors, and their frame structure is made of high-quality stainless-steel materials. It has the advantages of anti-corrosion, anti-rust, explosion-proof, small size, light weight, long life, reasonable structure, convenient operation, safe and reliable operation, etc.

　　The registered trademark of QXJ-360-A pneumatic high-pressure cleaner is "SINPO", and the implementation standard is GB/13960.12-2001. QXJ-360-A mode cleaning machine is powered by compressed air, drives a high-pressure water pump, and sprays a high-pressure water column through a high-pressure water pipe through a high-pressure water gun to clean various machinery and equipment. Pneumatic high-pressure cleaning machines are safer and more reliable than electric-powered cleaning machines and can fully meet the requirements stipulated in the "Safety Law".

　　Due to the use of compressed air as power, there will be no dangerous factors such as electric sparks, especially suitable for use in places with high safety and explosion-proof requirements such as petroleum, chemical industry, coal mines, flammable, explosive, high temperature, humidity, dust, etc., and can also be used in emergencies next, it is used for emergency firefighting.

Product parameters：
