DDM18″ type mud tank magnet

　　DDM18″ type mud tank magnet is a kind of iron removal device specially designed to remove ferromagnetic debris in oil drilling mud or other geological exploration drilling processes. It can effectively remove ferromagnetic debris in drilling mud and improve drilling quality of mud improves drilling speed. At present, mud tank magnet series products have been able to meet the installation requirements of DERRICR, BRANDJSS (U.S.A), SSS (U.S.A) and other imported brand vibrating screens and all domestic vibrating screens. During process, ferromagnetic impurities in the drilling mud are removed at the same time.

　　Instructions：

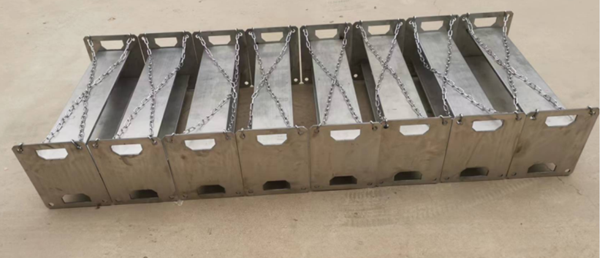

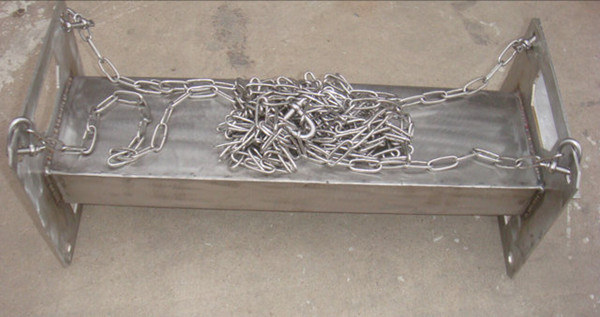

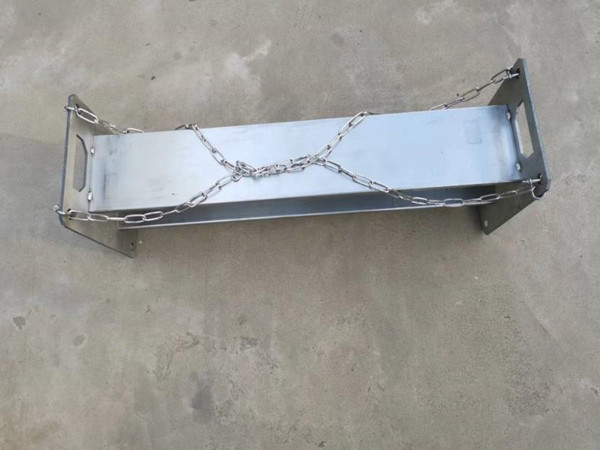

　　Mud tank magnet consists of a body and a fixed bracket, all of which are made of stainless steel. Its main body is divided into two layers, and upper and lower layers of each layer can absorb iron filings. The main body adopts imported magnets, which have the characteristics of strong adsorption capacity, large adsorption area and long service life. It is the magnet with the best adsorption capacity at present. Its installation method is to hang the fixed brackets on both sides of mud tank magnet in the mud by four 550mm stainless steel chains.

　　Main performance indicators：

　　⑴ Dimensions: 200mm×250mm×645mm

　　⑵ Operating temperature: ≤145℃

　　⑶ Coercivity: 10.8 kOe

　　⑷ Intrinsic coercive force: ≥21 kOe

　　⑸ Max. magnetic energy product: 268 kJ/m3

　　⑹ Quality: 20kg

NJCT24″ mud tank magnet is a kind of iron removal device specially designed to remove ferromagnetic debris in oil drilling mud or other geological exploration drilling processes. It can effectively remove ferromagnetic debris in drilling mud and improve drilling quality of mud improves drilling speed. At present, mud tank magnet series products have been able to meet the installation requirements of DERRICR, BRANDJSS (U.S.A), SSS (U.S.A) and other imported brand vibrating screens and all domestic vibrating screens. During process, ferromagnetic impurities in the drilling mud are removed at the same time.

　Main performance indicators：

　　⑴ Dimensions: 200mm×250mm×645mm

　　⑵ Operating temperature: ≤145℃

　　⑶ Coercivity: 10.8 kOe

　　⑷ Intrinsic coercive force: ≥21 kOe

　　⑸ Max. magnetic energy product: 268 kJ/m3

　　⑹ Quality: 20kg
