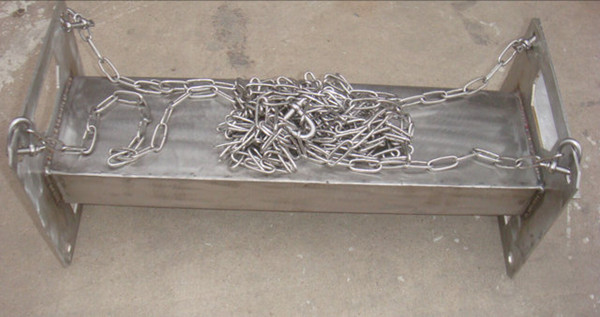

Mud iron remover

　　Mud iron remover is a kind of iron removal device specially designed for removing ferromagnetic debris in drilling mud. It uses high-performance NdFeB magnets and has the characteristics of high field strength and large magnetic field radiation depth. The use of unloading sleeve makes unloading very convenient.

　　Instructions：

　　When iron remover absorbs enough ferromagnetic debris and needs to be removed, remove the iron remover, open the plug-in plate at the end of tension beam, pull out magnet core, ferromagnetic debris will fall, then rinse with clean water. It can be used after reinstalling. The installation method is to hang iron remover in mud flow by four 800mm long stainless steel chains.

　　Precautions:

　　Avoid strong impact. During transportation, installation and cleaning operations, keep away from ferromagnetic objects to prevent adsorption impact, causing unnecessary equipment and personal injury.

　　2. Pay attention to ambient temperature and keep away from fire sources. Overheating can demagnetize the magnetic poles.

　　3. Remove ferromagnetic debris on pole surface in time. When ferromagnetic debris on pole surface absorbs too much, it will affect iron absorption effect.

       Parameter：

　　Dimensions：

      DDM18″ 200mm×200mm×495mm

　　DDM24″ 200mm×250mm×645mm

　　DDM30″ 200mm×250mm×795mm

　　DDM36″ 200mm×250mm×945mm

　　Magnetic field effective area：

       DDM18″ 125mm×380mm

　　DDM24″ 125mm×500mm

　　DDM30″ 125mm×650mm

　　DDM36″ 125mm×800mm

　　Field strength of magnetic pole：≥2200Gs

　　10mm away from the polar surface field strength>800Gs

　　Unloading method：Unloading sleeve

　　Operating temperature：<80℃

　　Weight：15/19/24/30kg
