CTQ-NJ mud iron remover

　　CTQ-NJ mud iron remover is a kind of iron removal device specially designed to remove ferromagnetic debris in oil drilling mud or other geological exploration drilling processes. It can effectively remove ferromagnetic sundries in drilling mud, improve the quality of drilling mud and increase drilling speed. At present, the series of mud separators have been able to meet the installation requirements of DERRICR, BRANDT, JSS (U.S.A), SSS (U.S.A) and other imported brand vibrating screens and domestic vibrating screens. During the process of separating drilling fluid by vibrating screen, drilling fluid is also removed. Components of ferromagnetic impurities in mud.

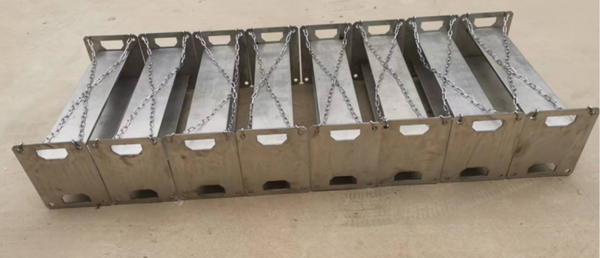

　　The slurry iron remover consists of a body and a fixed bracket, all of which are made of stainless steel. Its main body adopts imported magnets, which have the features of strong adsorption capacity, large adsorption area and long service life. Among them, max. working temperature of magnet can reach 145°C, the coercive force is 10.8 kOe, intrinsic coercive force is ≥21 kOe, and max. magnetic energy product is 268 kJ/m3. It is currently the magnet with the strongest adsorption capacity. The fixed bracket is used to fix the mud separator. Before use, loosen the bolts on both sides, and then fit them on the beam of vibrating screen feed tank, and then press the bolts on both sides on the beam of feed tank.

　　Matters needing attention when using CTQ-NJ mud iron separator:

　　(1) The max. working temperature used cannot exceed 145°C. Otherwise, it will be degaussed.

　　⑵. This mode of magnet is an imported magnet, which is very brittle and easy to break, so knocking and collision are strictly prohibited. Otherwise, it will be degaussed.

　　⑶. It is strictly forbidden to remove small screws on the body without permission. Otherwise, it will be degaussed.

　　⑷. Clean up the iron filings or iron lumps adsorbed on the surface of slurry iron remover in time. It is strictly forbidden to clean with iron tools, it is best to clean directly with manual gloves.

　　(5) Regularly clean the mud and other impurities adhered to the upper and lower sides of adsorber. It is strictly forbidden to use iron tools to remove, it is best to use plastic or wooden tools to remove.

CTQ-NJ mud iron remover is a kind of iron removal device specially designed to remove ferromagnetic debris in oil drilling mud or other geological exploration drilling processes. It can effectively remove ferromagnetic sundries in drilling mud, improve the quality of drilling mud and increase drilling speed. At present, the series of mud separators have been able to meet the installation requirements of DERRICR, BRANDT, JSS (U.S.A), SSS (U.S.A) and other imported brand vibrating screens and domestic vibrating screens. During the process of separating drilling fluid by vibrating screen, drilling fluid is also removed. Components of ferromagnetic impurities in mud.

Dimensions：

DDM18″    200mm×200mm×495mm

DDM24″    200mm×250mm×645mm

DDM30″    200mm×250mm×795mm

DDM36″    200mm×250mm×945mm

Magnetic field effective area：

       DDM18″    125mm×380mm

       DDM24″    125mm×500mm

       DDM30″    125mm×650mm

       DDM36″    125mm×800mm

Field strength of magnetic pole：≥2200Gs

10mm away from the polar surface field strength＞800Gs

Unloading method：Unloading sleeve

Operating temperature：＜80℃
